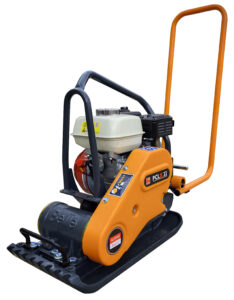

Belle PCLX32 Petrol Compaction Plate

FEATURES & BENEFITS

• Low Hand-Arm Vibration design for longer safe usage times.
• Powerful, reliable Honda GX120 petrol engine.
• High performance 13kN vibration unit gives excellent compaction force and travel speeds.
• Tubular frame designed to protect vulnerable components.
• Baseplate designed for optimised speed and manoeuvrability.
• Lightweight yet durable for easy transport.
• Fits in a standard car boot when the handle is folded.
• Fitted with manual handling points.
• Engineered to be robust and durable for rental and heavy contractor usage.
• Easy to operate and control, the baseplate does not dig in when dragged backwards or turned.
• Optional, removable 12-litre water tank features a quick-release design.
• Optional wheel kit to aid on-site transportation available.
• Optional paving pad for block paving applications available.

TECHNICAL SPECIFICATIONS

Engine: Honda GX120
Width (mm): 320
Operating Height (mm): 935
Operating Length (mm): 950
Storage Height (mm): 620
Storage Length (mm): 790
Engine Power (Hp / Kw): 3.2 / 2.4
Engine RPM: 3850
Weight (kg): 64
Static Pressure (kg/m²): 416
Centrifugal Force (kN): 13
Frequency (Hz): 101
Max. Travel Speed (m/min): 20
Vibration level (m/sec²): 2.49
