Chapman FM120 & FM150 ATV Flail

*BUILT TO ORDER*

Designed for the full range of topping and mowing tasks, from thick dense rushes to fine topping of parkland, our range of Flail Mowers can tackle anything thrown at them.

Features
-Powerful 21hp Honda Petrol Engine
-Heavy duty construction throughout
-Unique double helix flail rotor
-Large diameter tyres for smooth travel
-Automatic belt tension system
-Heavy duty ‘Y’ flails

Engine & Power
We use industry-leading 21hp Honda GX630 V-Twin Engines, which offer unparalleled power and performance. All machines are fitted with a heavy-duty rear roller to prevent scalping. The compact design of the FM Series self-powered flail topper keeps the mass low to the ground for stability and allows cutting easily beneath trees and overhanging branches.

Clutch & Drive
The FM Series are fitted as standard with a centrifugal clutch, allowing for safe & efficient operation from the towing machine.
The centrifugal clutch gives automatic drive engagement and disengagement, and combined with the automatic tensioning assembly reduces maintenance by compensating for belt wear and belt loading.

Rotor

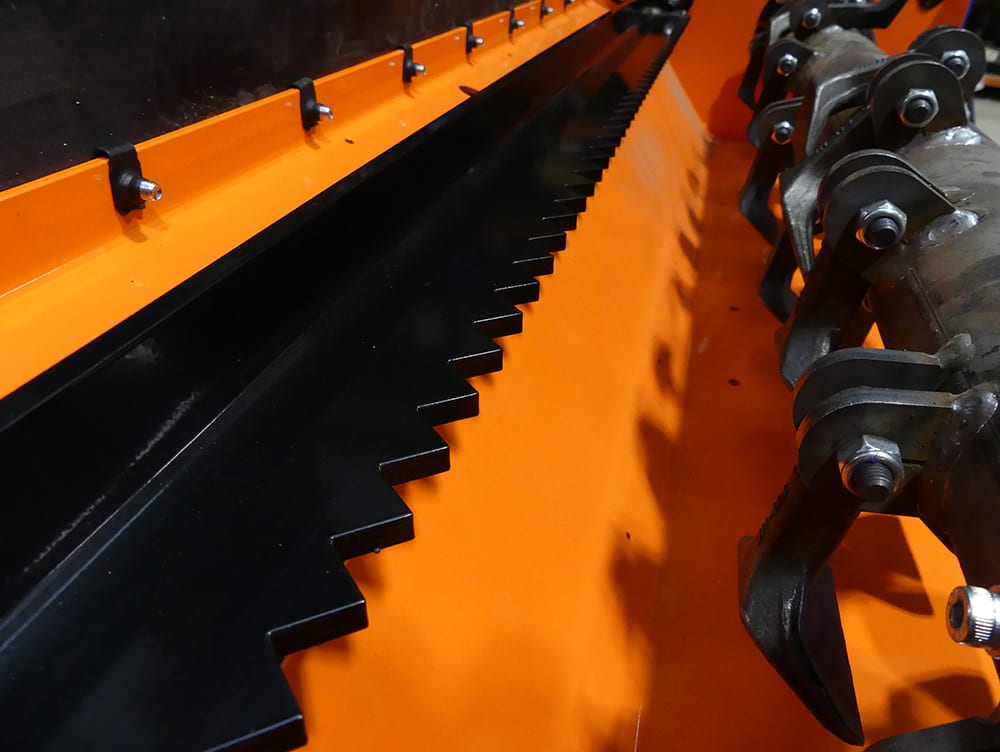

Our innovative rotor design incorporates a solid 40mm diameter drive shaft right through the centre of the rotor with a structural grade 90mm diameter outer tube, onto which the flail lugs are welded in a spiral pattern. This unique design transfers cutting power more efficiently from the engine to the cutting heads, giving a cleaner cut and better performance in tough situations. Furthermore the rotor incorporates dedicated bearing guards designed to prevent string and wire damaging the bearings.

Strength & Build
The FM Series feature heavy duty steel ‘Y’ flails for a clean and effective cut whatever your scenario. Simple height adjustment for ease of use and heavy duty & robust B Section drive belts for low maintenance ownership, complete the package for this class leading ATV Flail Mower.

Compatibility

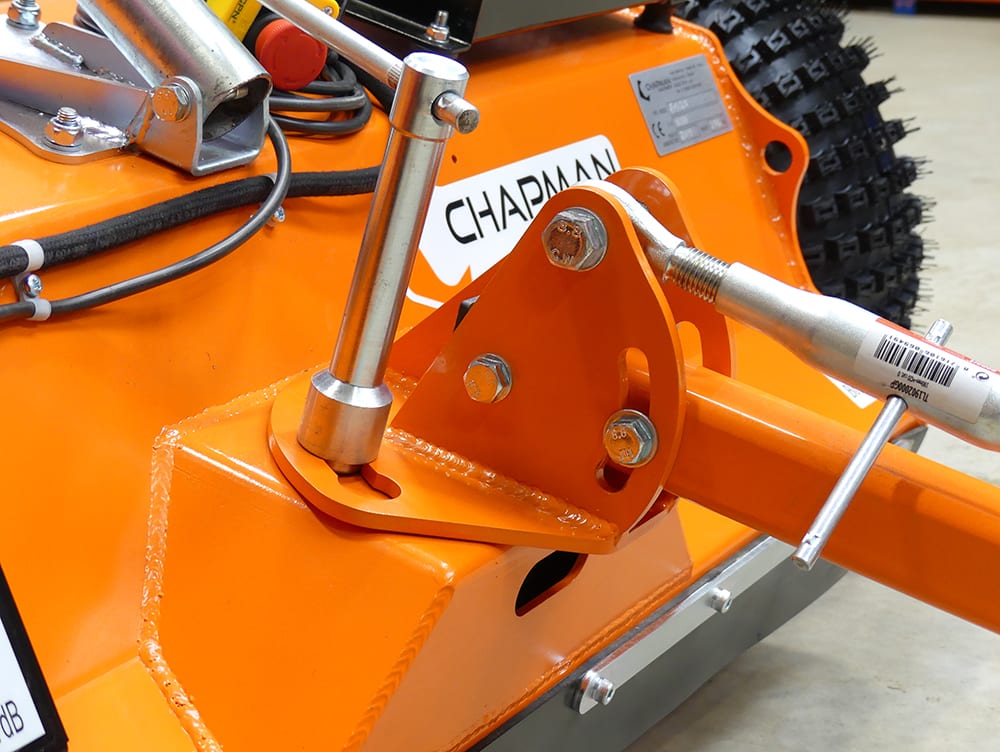

Simple cutting height adjustment, large wheels and easy-to-use design along with the ability to fit on a variety of vehicles such as ATV, UTVs and 4x4s make these machines a pleasure to use. This versatility ensures that you can use the flail mower with multiple vehicles, making it a practical and cost-effective solution for your agricultural or landscaping needs. It’s incredibly quick and easy to hitch up and get mowing, perfect for those small maintenance tasks and keeping on top of weeds and other vegetation.

Reliability
Our ATV flail mowers are durable and reliable machines, made in Britain to last. With 5mm steel on the main deck, and up to 15mm thick steel elsewhere, the ATV Flail Mowers really are a quality product designed for years of use and abuse in tough terrain. It’s one of the heaviest duty flail mowers on the market, ensuring optimal performance and efficiency, and a long service life. You can trust that your ATV flail mower will provide you with superior cutting ability and longevity for years to come.

An ATV Flail Mower is one of the most versatile and cost-effective ways for farmers, smallholders and landowners to maintain their land with many benefits such as:
-Cost-effective way to maintain fields and paddocks using existing towing vehicles
-Much easier & quicker to connect up and use than tractor mounted units – easier to use for operators
-Improves the overall health of the land by mulching and recycling vegetation back into the soil
-Helps prevent the spread of weeds and invasive species with timely cutting to prevent flowering and seeding
-Can be used to maintain hard-to-reach areas where a tractor-mounted mower may not be practical or safe
