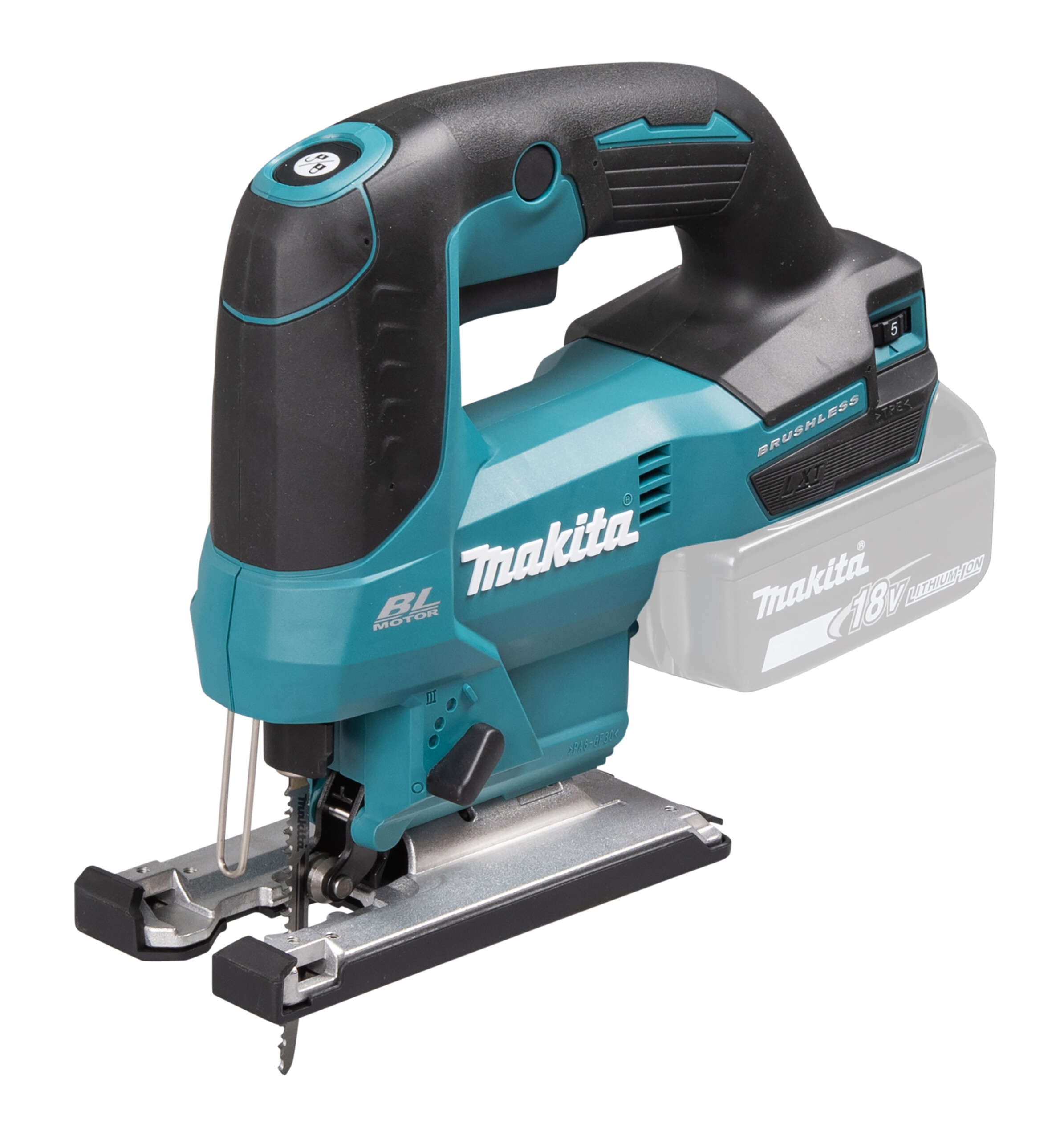

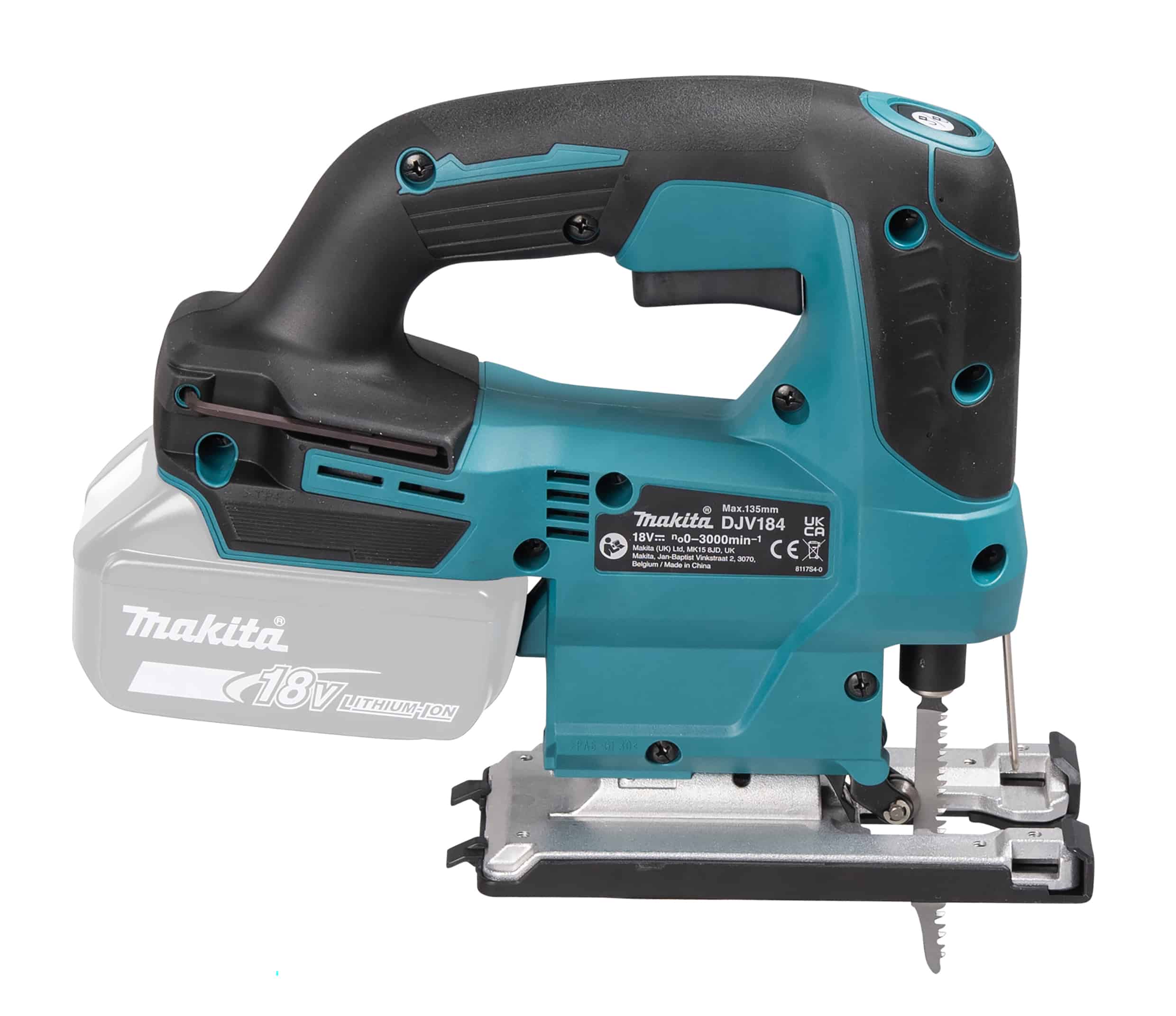

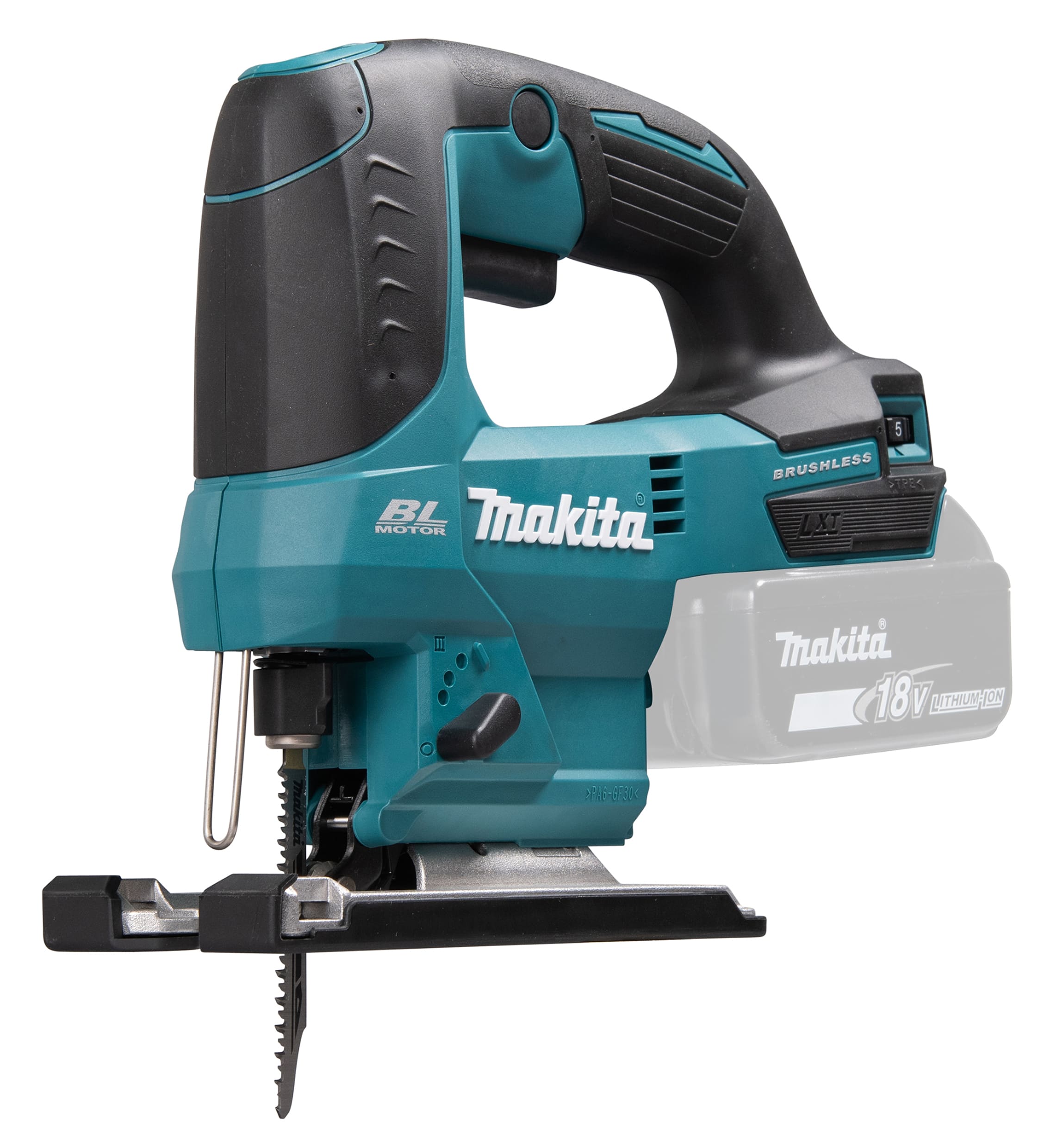

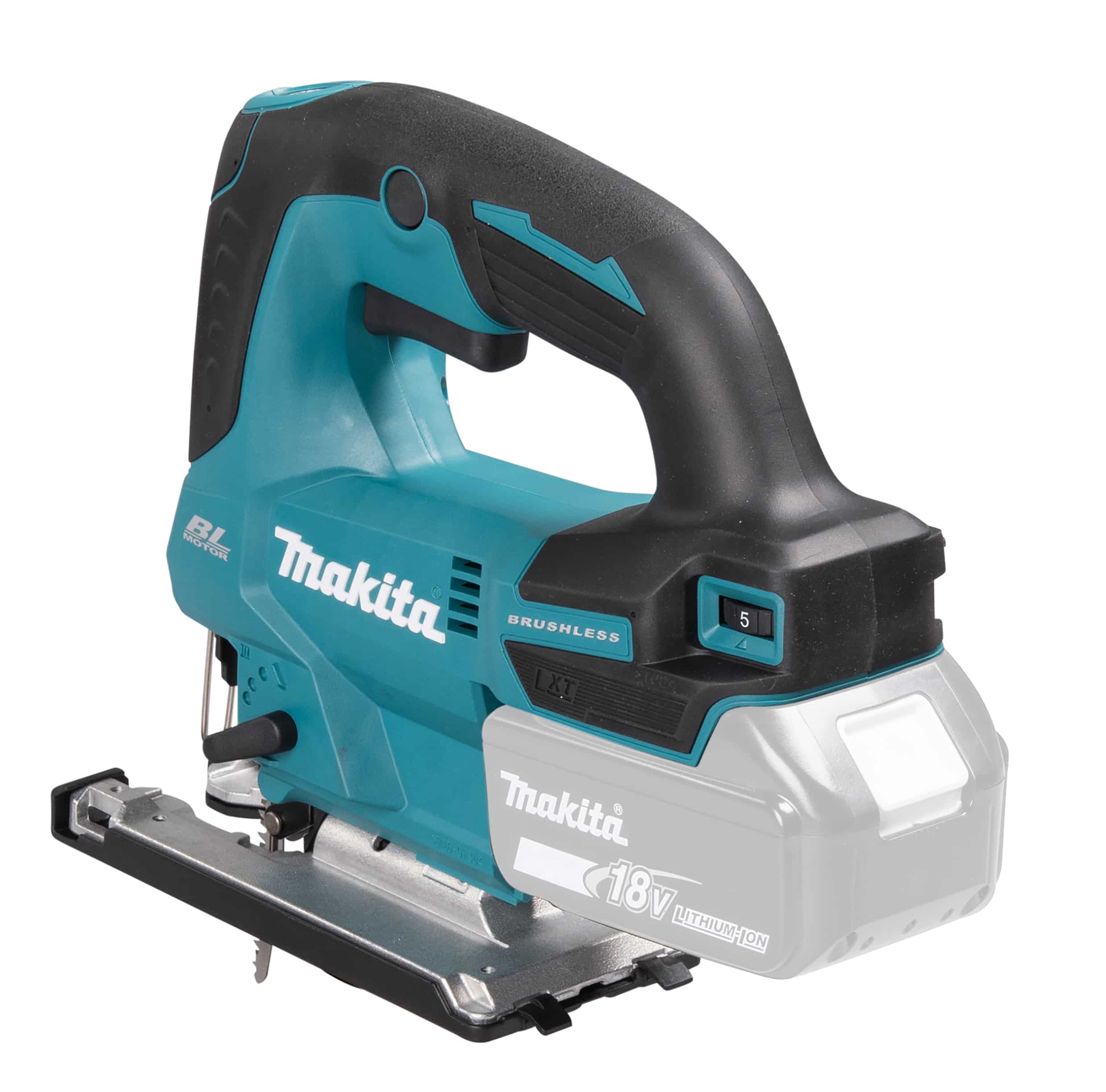

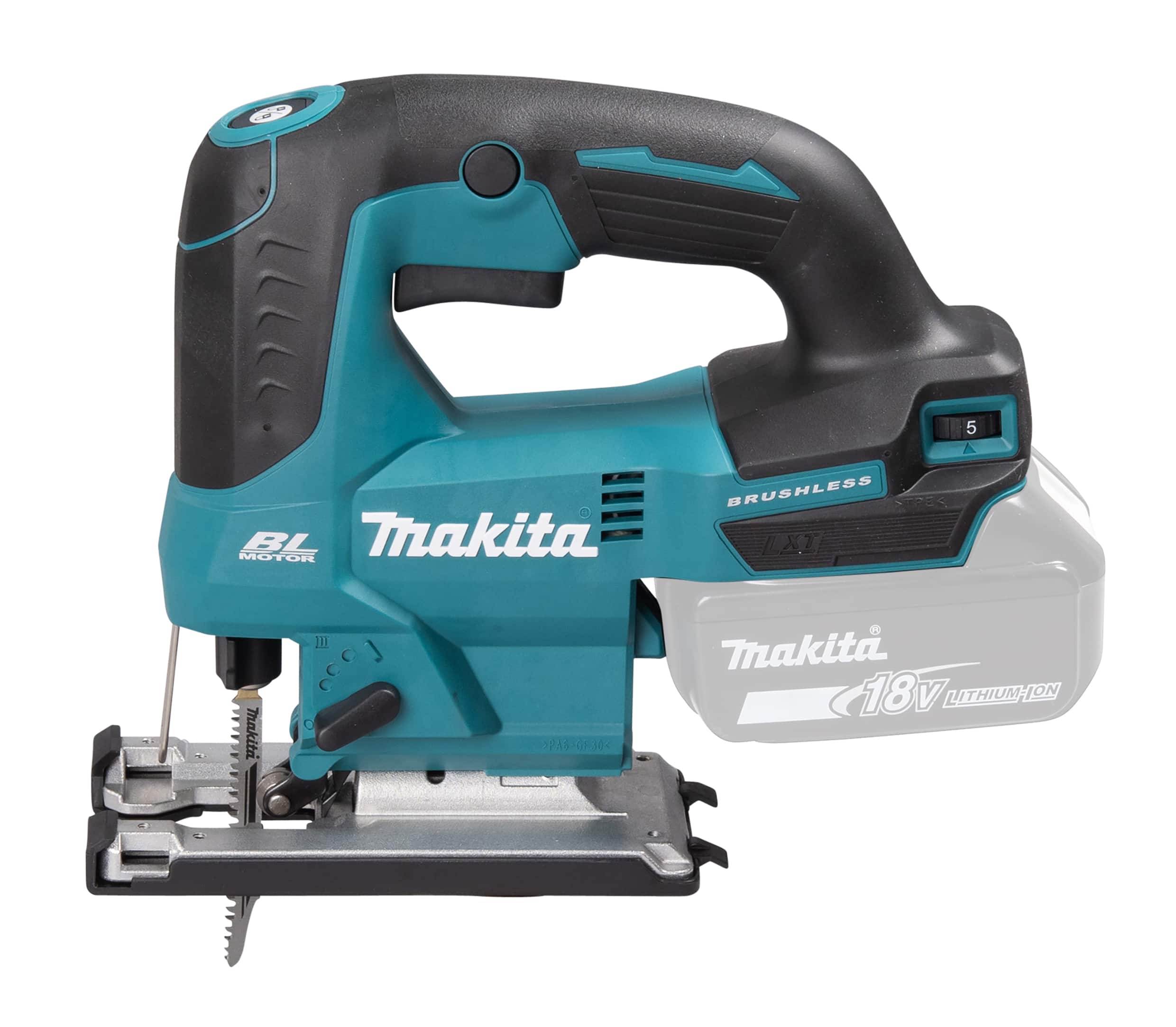

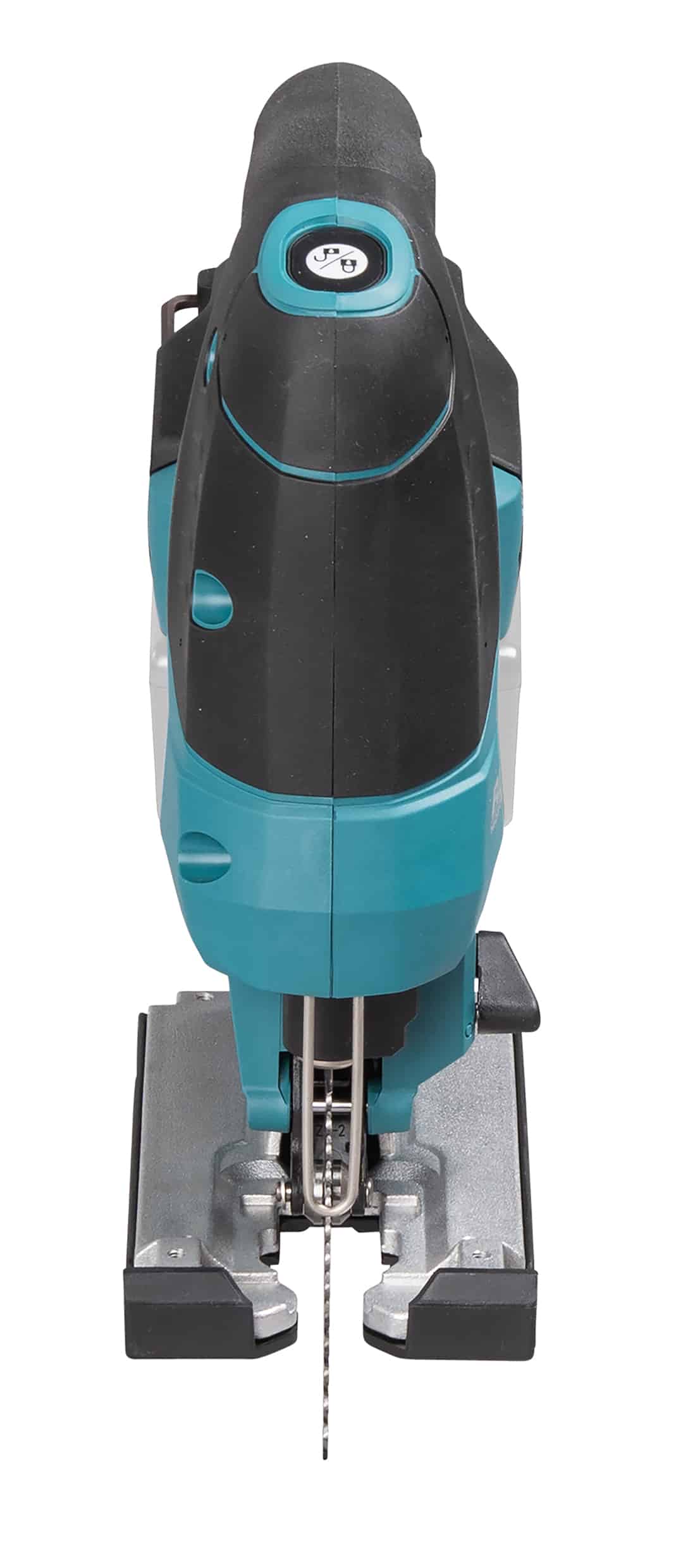

Efficient brushless jigsaw with tool-less blade change
An efficient saw with 3 Orbital Settings Plus Straight Cutting and tool-less blade change. Engine speed can be adjusted between 0 and 3 000 min⁻¹ from a dial to suit the material. A stroke length of 23 mm and cutting capacity of 135 mm in wood and 10 mm in steel.
User benefits
- Brushless maintenance-free and long-life motor
- LED light illuminates the work site
- Soft no load function automatically reduces the motor speed during idling to suppress the vibration
- Compact and lightweight for reduced operator fatigue
Technical specifications
-
-
Voltage LXTNominal Battery Voltage18 VBrushless MotorStrokes per Minute (SPM)0 – 3000 min⁻¹Length of Stroke23 mmMax. Cutting Capacity in Wood (90°)135 mmMax. Cutting Capacity in Steel (90°)10 mmCapacity Aluminium20 mmSound Power Level (LWA)93 dB(A)Sound Pressure Level (LpA)82 dB(A)Noise Uncertainty (K Factor)3 dB(A)Vibration Level (3 axes), Cutting Chipboard7,4 m/s²Vibration Level (3 axes), Cutting Sheet Metal5,1 m/s²Vibration Uncertainty (K Factor)1,5 m/s²Tool weight with battery (EPTA)2,1 – 2,4 kgProduct Dimensions (L x W x H):259 x 77 x 205 mmContinuous Input Power400 WMax Output Power400 WMax. Bevel Range (Left)45 ºProduct net weight1,7 kgVacuum cleaner connection Ø in / out23/28 mm

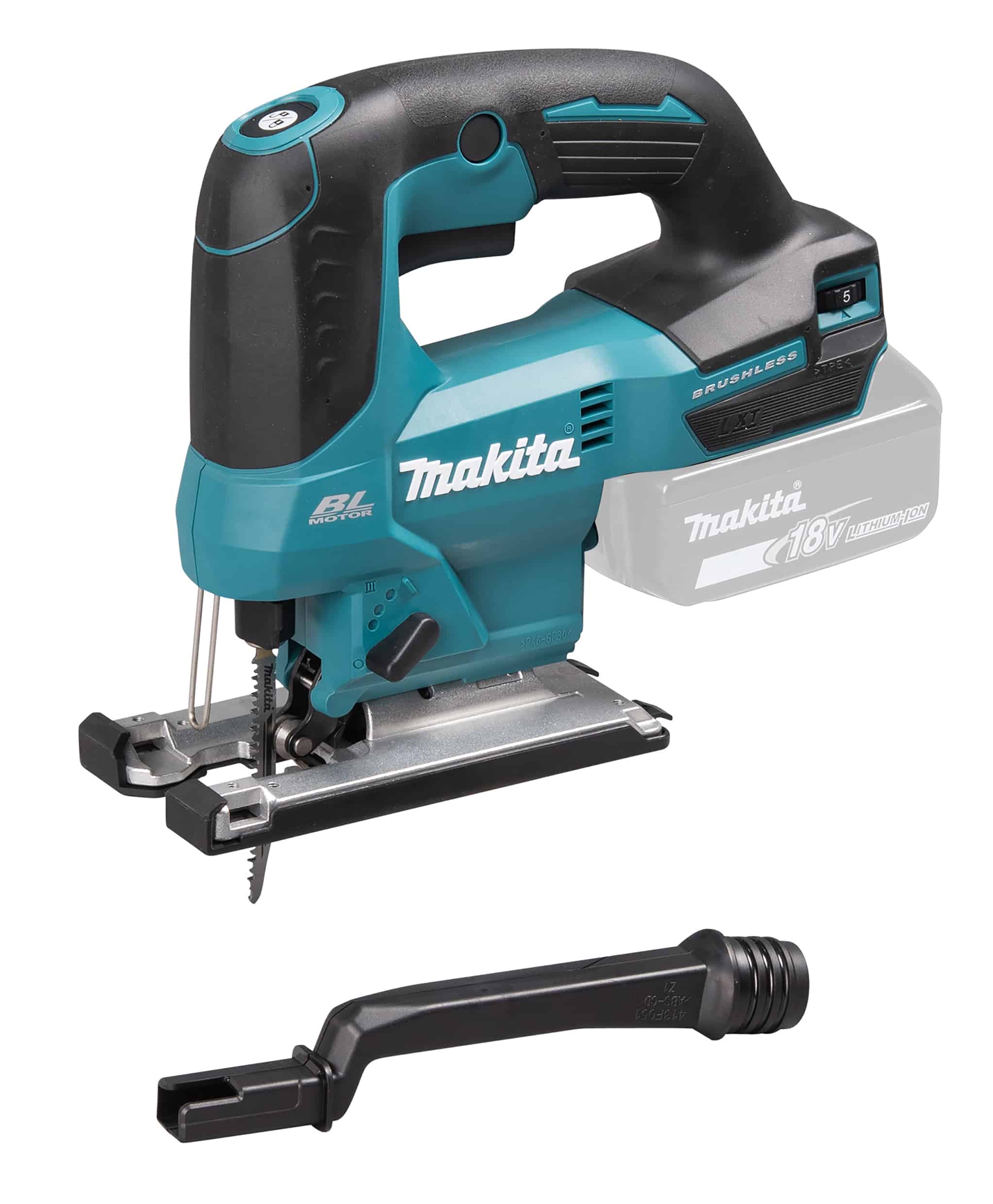

Variable Speed, Brake, Anti-restart function, Constant speed, Orbital cutting, Bayonet shank, Dust Collection, Toolless Blade Change, Built-in Job Light
-
