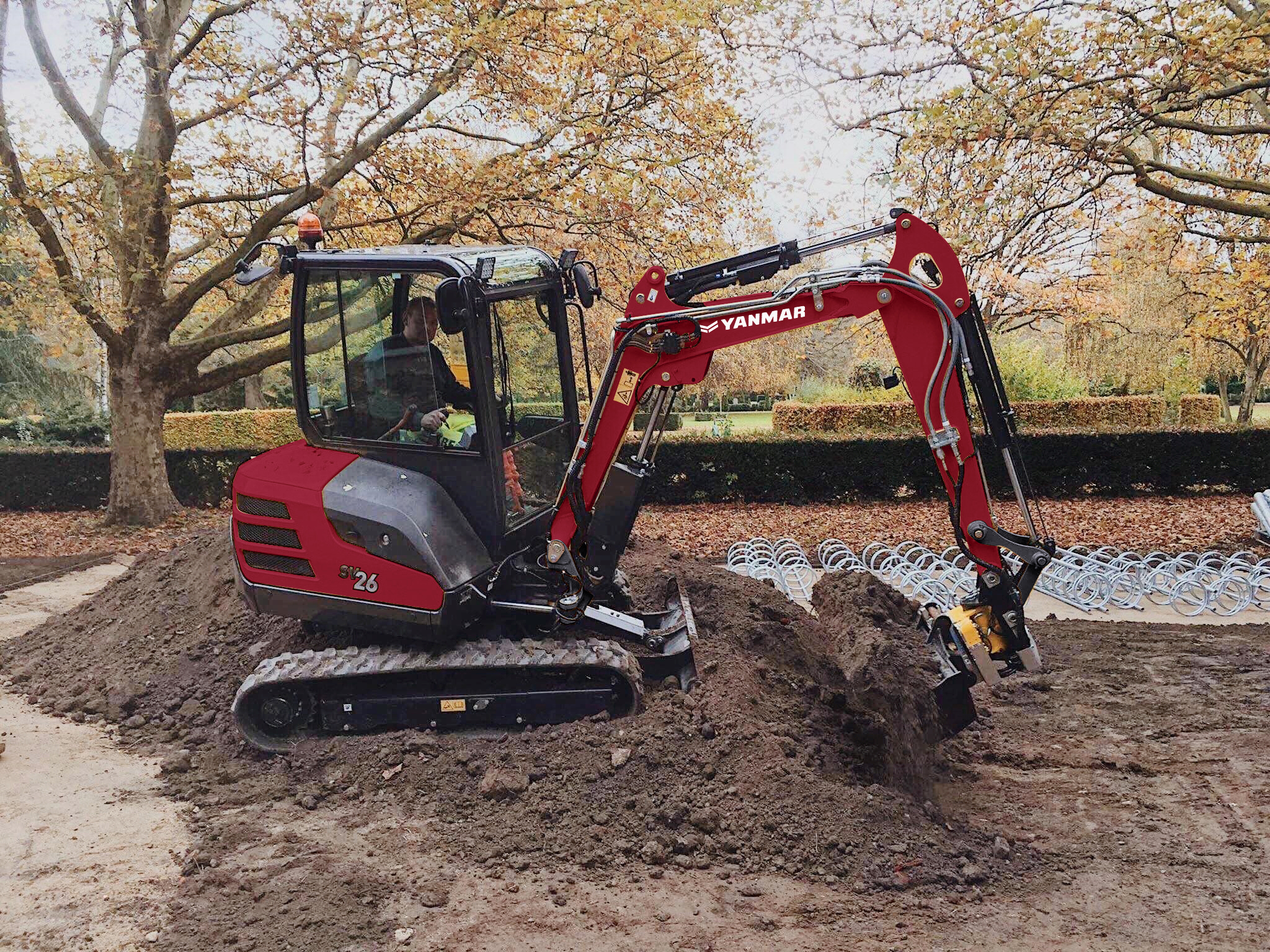

The YANMAR SV26 (£26,240.00 + VAT) is a mini excavator designed for versatility and performance. Here are some key specifications and features:
Weight
- Transport weight: 2525 kg (canopy) / 2665 kg (cabin)
- Operating weight: 2600 kg (canopy) / 2740 kg (cabin)
Engine
- Type: 3TNV82A-BPBVA
- Fuel: Diesel (Meets EN standards)
- Net Power: 17.6 kW / 23.9 HP / 2400 rpm
- Gross Power: 18.1 kW / 24.8 HP / 2400 rpm
- Displacement: 1.331 litres
- Max Torque: 85.5 N.m. / 1400 rpm
- Automatic 2nd speed
Hydraulic System
- Maximum Pressure: 210 bars
- Working Pump: 2 double piston pumps with variable flow / 1 gear pump / 1 gear pump trochoid
- Max Flow: 2 x 32.4 l/min / 21.6 l/min / 10.8 l/min
- Hydraulic Tank: 25.2 litres
- Oil Gauge
- 1x auxiliary circuit with proportional control
Performance
- Travel speed: 2.9 / 4.8 km/h
- Rotation Speed: 10.2 rpm
- Digging Force (arm): 14.5 kN / 12.7 kN (with long arm)
- Digging Force (bucket): 24.5 kN
- Traction Force: 37 kN
- Noise level: 76 dB (A) / 94 dB (A) (LwA)
- Fuel Tank: 38.5 liters
- Dig Depth 2690mm
Dimensions
- Overall length: 4250 / 4295 mm
- Overall height: 2435 mm
- Overall width: 1550 mm
- digging depth (blade lifted): 2595 / 2845 mm
- digging reach on ground: 4400 / 4580 mm
- vertical wall: 2245 / 2455 mm
- dumping height: 2835 / 2995 mm
- cutting height: 3995 / 4130 mm
Buckets and Attachments
- Geith Hydraulic Quick Hitch £1969.00 + vat.
- Geith Digging Bucket 300mm/12” £264.00 + vat.
- Geith Digging Bucket 450mm/18” £273.00 + vat.
- Geith Bucket 600mm/24” £295.00 + vat.
- Geith Ditching Bucket 1000mm/40” £363.00 + vat
Stability
The SV26 has a conventional structure with reduced tail overhang, providing increased lifting performance and stability. Its long track base enhances digging stability and lifting capacity, while wide 300 mm tracks ensure excellent traction. An optional rear counterweight protects against shocks and friction when using heavy attachments.
Comfort
With the largest cab in its class, the SV26 offers spacious interiors, generous legroom, and operator comfort with fabric covered adjustable and reclining seat with suspension with headrest and Footrests. Less fatigue and more freedom of movement contribute to a pleasant working experience. An LCD Interface, storage boxes and lockable document box along with a cup holder. Cab mounted on viscoelastic rubber blocks to give a comfortable ride. Windshield in two parts with a retractable upper part and a double sliding right side window. There are 2x 12v outlets to be able to charge a phone etc.
Safety
- Handrails
- Safety lever and belt
- 3x mirrors
- Travel beep
- Anchor points
- Blade cylinder supply hose in two parts
- Complete protection of the cylinders (blade, arm, and boom)
- Hoses protected by abrasion resistant sleeves.
- Locking covers.
Whether it’s urban work, landscaping, or challenging environments, the YANMAR SV26 delivers first-class performance in a compact package.
For more information please contact Ian Kelly on 07557 923943 or ikelly@tuckwells.com
